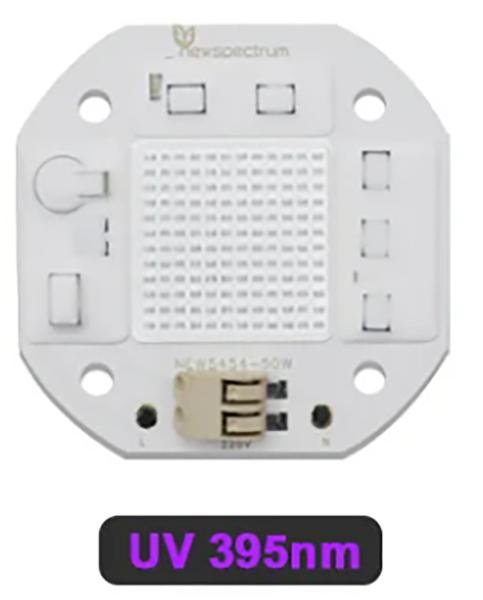

395nm UV 50W LED Chip 220V Welding Free COB LED Light Beads For Party Stage Lighting

Shenzhen Colighting Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 395nm UV 50W LED Chip 220V Welding Free COB LED Light Beads For Party Stage Lighting from wholesalers

    Buy cheap 395nm UV 50W LED Chip 220V Welding Free COB LED Light Beads For Party Stage Lighting from wholesalers
    • Buy cheap 395nm UV 50W LED Chip 220V Welding Free COB LED Light Beads For Party Stage Lighting from wholesalers

    395nm UV 50W LED Chip 220V Welding Free COB LED Light Beads For Party Stage Lighting

    Ask Lasest Price
    Brand Name : Colighting
    Model Number : 395nm UV
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 50000pcs/m
    Delivery Time : 1-3 workdays
    • Product Details
    • Company Profile

    395nm UV 50W LED Chip 220V Welding Free COB LED Light Beads For Party Stage Lighting

    50W LED Chip 220V Welding Free COB LED Light Beads 395nm UV light source for Party Stage Lighting Glow in Dark Neon Lamp


    Specifications:

    1. Model: NEW 5454

    2.Voltage: AC 220V-240V

    3. Power: 20W/30W/50W

    4. Luminous Flux:100lm/W

    5. CCT: 395nm UV

    6. Hole size: 3.5 mm

    7. Board Size: 54 mm*54 mm*1.6mm

    8. Luminous Size: 25 mm*25 mm

    9. Chip Size:15*30 mils

    10. Working Temperature: -20 °C~60℃

    11. Lumen: 100lm/w

    12. Application: Grow light/Floodlight

    13. Customized: Please contact us


    Features

    : LED flip chip assembly technology. Good heat dissipation effect, higher light output rate, long life

    ②: High brightness, our LED chips are bigger than others

    ③: Smart IC Fit NO Driver

    ④: Constant current and constant power control
    ⑤: NTC sensor for pcb overheat protection
    ⑥: Voltage-regulator for ic vdd protection
    ⑦: Driver IC, over voltage and over current control
    ⑧: It can use LED dimmer or SCR dimmer to dimming it

    ⑨: MOV for surge protection>4000V passed

    ⑩: 1000V Bridge rectifier

    Specification
    Power
    20W
    30W
    50W
    Voltage
    AC220-240V(50Hz/60Hz)
    AC220-240V(50Hz/60Hz)
    AC220-240V(50Hz/60Hz)
    Color
    Cool/Warm White/Others
    Cool/Warm White/Others
    Cool/Warm White/Others
    CRI (Ra)
    70-80
    70-80
    70-80
    CCT
    1400-6500K
    1400-6500K
    1400-6500K
    Luminous Flux
    80 lm/W
    80 lm/W
    80 lm/W
    Board Size
    54 mm*54 mm
    54 mm*54 mm
    54 mm*54 mm
    Luminous Size
    25 mm*25 mm
    25 mm*25 mm
    25 mm*25 mm
    Hole Distance
    30 mm*30 mm
    30 mm*30 mm
    30 mm*30 mm
    Working Temperatur
    -20℃~60℃
    Customized
    Color/Brightness/Logo/Others
    Application
    Spotlights/Grow light/Floodlight

    Flip Chip
    A1:No lead connection required
    A2:No line shading, higher light output rate
    A3:Direct bonding, good heat dissipation effect
    A4:Suitable for high-power light sources
    A5:Longer life

    Wire Bonding Chip
    A1:Need lead connection
    A2:The front electrode blocks light, and the light output rate is low
    A3:Insulating glue solid crystal, low heat dissipation efficiency
    A4:Only suitable for small current
    A5:Wired occupies volume, small space
    FAQ
    Q1: Can I have a sample order to test?
    A: Yes, we are pleased to supply samples to test and check quality, mixed sample order is available.

    Q2: Do you have any MOQ limited?
    A: Low MOQ,1 pcs to test is available.

    Q3: How long is the lead time?
    A: Sample in stock: 1-3 days. Customized production: 7-15 days depend on the order quantity.

    Q4: How to order the good?
    A: First, tell us your request or application.
    Second, according to your requirements, we give you the quotation.
    Third, the customer confirms the sample of the official order, the destination of the transportation, and the fee for the payment of the sample.
    Fourth, after receiving the payment, we will arrange production an
    d deliver the goods in time.
