    Solderless Chip On Board Led COB 50W 220V For Floodlight Downlight

    Ask Lasest Price
    Brand Name : newspectrum
    Model Number : NEW 5454
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 50000pcs/day
    Delivery Time : 3-5 workdays
    • Product Details
    • Company Profile

    Solderless Chip On Board Led COB 50W 220V For Floodlight Downlight

    Newspectrum 5454 20W 30W Solderless Connector Downlight Spotlight COB Module LED COB 50W 220V


    Specifications:

    1. Model:NEW 5454

    2. Voltage:AC 220V-240V

    3. Power:20W/30W/50W

    4. Luminous Flux:100lm/W

    5. CRI:80

    6. Hole size:3.5 mm

    7. Board Size:54 mm*54 mm

    8. Luminous Size:25 mm*25 mm

    9. Chip Size:15*30 mils

    10. Working Temperature:-20 °C~60℃

    11. Lumen: 100lm/w

    12. Application: Grow light/Floodlight

    13. Customized: Please contact us


    Solderless Chip On Board Led COB 50W 220V For Floodlight Downlight

    Features

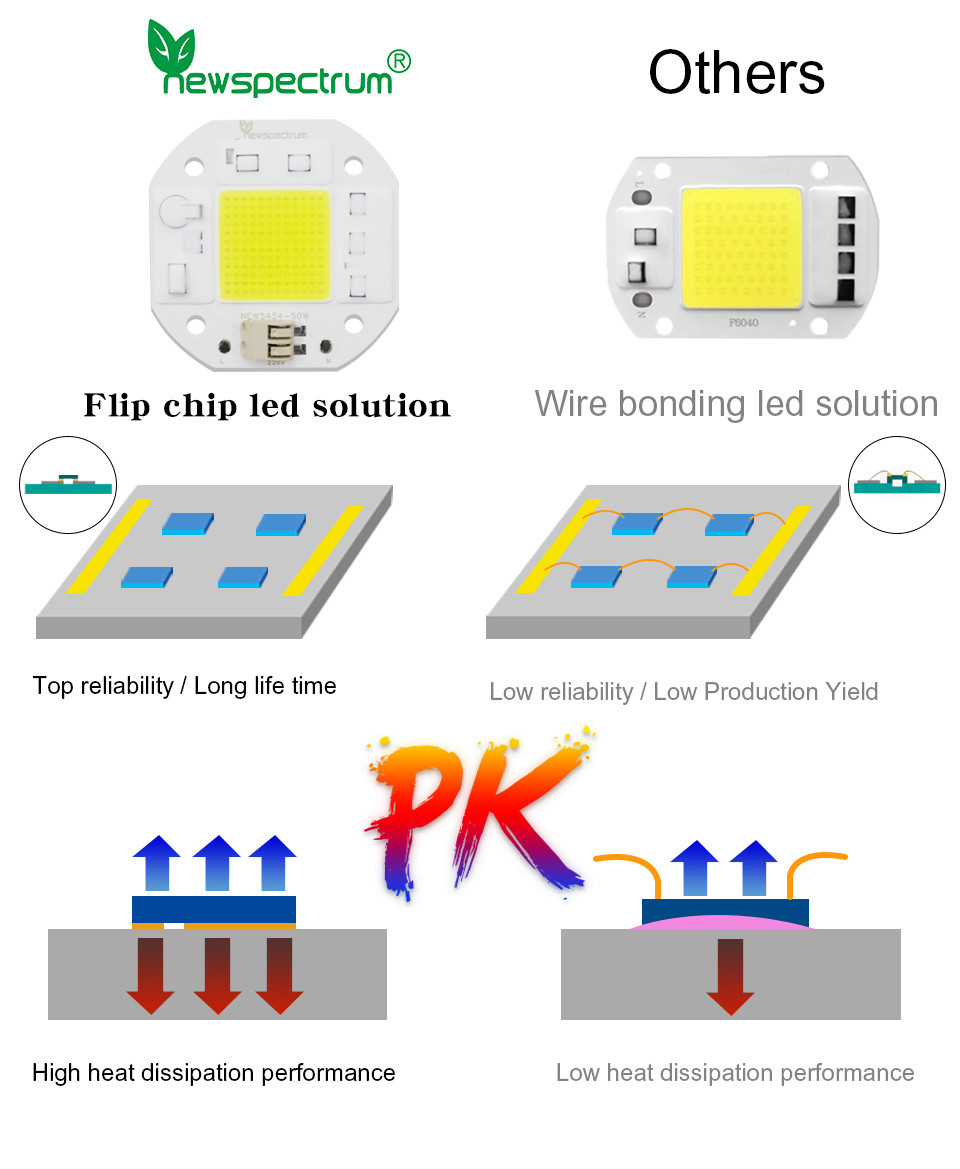

    : LED flip chip assembly technology. Good heat dissipation effect, higher light output rate, long life

    ②: High brightness, our LED chips are bigger than others

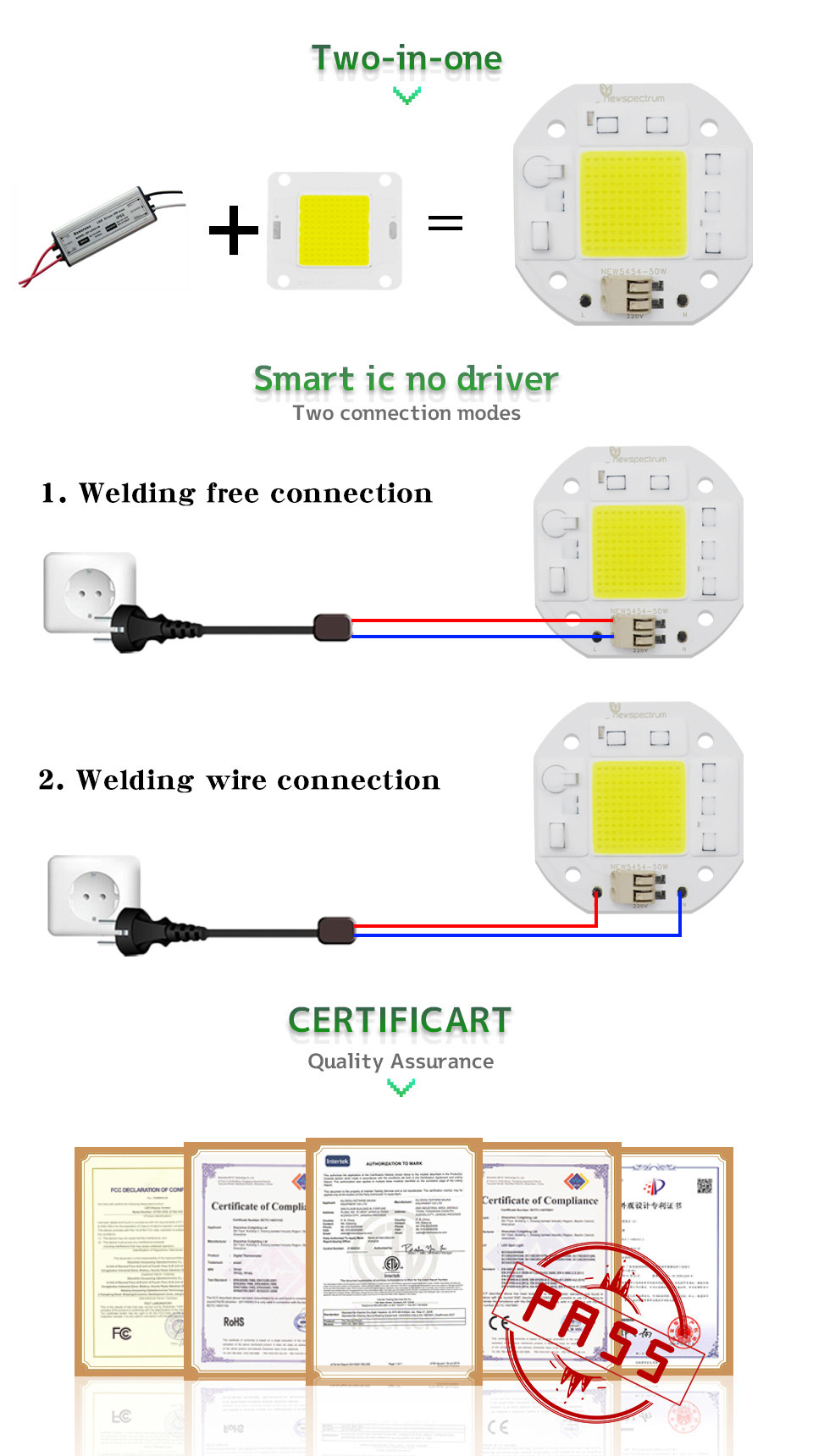

    ③: Smart IC Fit NO Driver

    ④: Constant current and constant power control
    ⑤: NTC sensor for pcb overheat protection
    ⑥: Voltage-regulator for ic vdd protection
    ⑦: Driver IC, over voltage and over current control
    ⑧: It can use LED dimmer or SCR dimmer to dimming it

    ⑨: MOV for surge protection>4000V passed

    ⑩: 1000V Bridge rectifier

    Specification
    Power
    20W
    30W
    50W
    Voltage
    AC220-240V(50Hz/60Hz)
    AC220-240V(50Hz/60Hz)
    AC220-240V(50Hz/60Hz)
    Color
    Cool/Warm White/Others
    Cool/Warm White/Others
    Cool/Warm White/Others
    CRI (Ra)
    70-80
    70-80
    70-80
    CCT
    1400-6500K
    1400-6500K
    1400-6500K
    Luminous Flux
    80 lm/W
    80 lm/W
    80 lm/W
    Board Size
    54 mm*54 mm
    54 mm*54 mm
    54 mm*54 mm
    Luminous Size
    25 mm*25 mm
    25 mm*25 mm
    25 mm*25 mm
    Hole Distance
    30 mm*30 mm
    30 mm*30 mm
    30 mm*30 mm
    Working Temperatur
    -20℃~60℃
    Customized
    Color/Brightness/Logo/Others
    Application
    Spotlights/Grow light/Floodlight

    Solderless Chip On Board Led COB 50W 220V For Floodlight Downlight

    Solderless Chip On Board Led COB 50W 220V For Floodlight DownlightSolderless Chip On Board Led COB 50W 220V For Floodlight DownlightSolderless Chip On Board Led COB 50W 220V For Floodlight DownlightSolderless Chip On Board Led COB 50W 220V For Floodlight DownlightSolderless Chip On Board Led COB 50W 220V For Floodlight DownlightSolderless Chip On Board Led COB 50W 220V For Floodlight Downlight

    FAQ
    Q1: Can I have a sample order to test?
    A: Yes, we are pleased to supply samples to test and check quality, mixed sample order is available.

    Q2: Do you have any MOQ limited?
    A: Low MOQ,1 pcs to test is available.

    Q3: How long is the lead time?
    A: Sample in stock: 1-3 days. Customized production: 7-15 days depend on the order quantity.

    Q4: How to order the good?
    A: First, tell us your request or application.
    Second, according to your requirements, we give you the quotation.
    Third, the customer confirms the sample of the official order, the destination of the transportation, and the fee for the payment of the sample.
    Fourth, after receiving the payment, we will arrange production an
    d deliver the goods in time.
