20W COB LED Module Size 40mm COB LED Chip For Light Floodlight Chip

Ask Lasest Price
Brand Name :	newspectrum
Model Number :	NEW 4060
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	50000pcs/m
Delivery Time :	3-8 workdays
Price :	Negotiable

Add to Cart

Product Details
Company Profile

20W COB LED Module Size 40mm COB LED Chip For Light Floodlight Chip

AC COB LED chip 220V 20W 30W 50W green light suitable for landscape lighting stage light floodlight chip

Product Description

Class	Item	DOB4060-20W		DOB4060-30W		DOB4060-50W
Electrical Parameter	Input Voltage	AC 180-300V (50/60 Hz)
	Working Voltage	AC 220-240V (50/60 Hz)

	Power	20W		30W		50W
	Power Factor	>0.9		>0.9		>0.9

	Surge Tolerance	4 KV L/N PE		4 KV L/N PE		4 KV L/N PE

Optical Parameter	Luminous Efficiency	100 lm/W		100 lm/W		100 lm/W

	CCT	1400K-6500K
	Ra	80
	Luminescence Angle	120°		120°		120°
Parameter	Size	40 mm*60 mm
	Luminous Area	25 mm*25 mm

	Base Board	Al MCPCB, Thermal resistance>1.5
	Thickness	1.6 mm	1.6 mm		1.6 mm
Environment	Work Temperature	-40～80 °C(基板温度)(PCB Temperature)

Life Time	>50000(hours)

Features

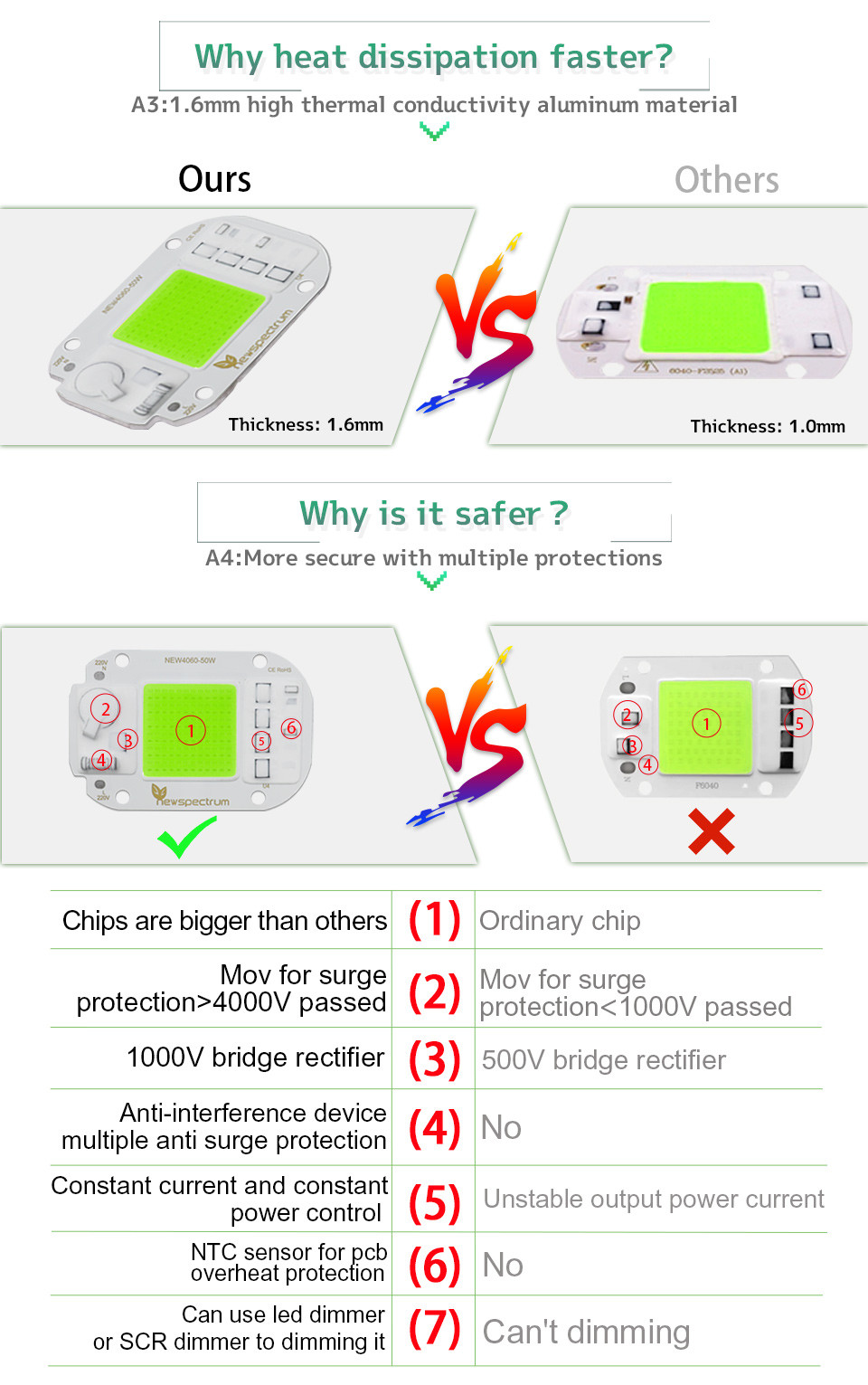

①: LED flip chip assembly technology. Good heat dissipation effect,
higher light output rate, long life
②:High brightness, our led chips are bigger than others
③:Smart IC Fit NO Driver
④: Constant current and constant power control
⑤: NTC sensor for pcb overheat protection
⑥: Voltage-regulator for ic vdd protection
⑦: Driver IC, over voltage and over current control
⑧: It can use led dimmer or SCR dimmer to dimming it
⑨: MOV for surge protection>4000V passed
⑩:1000V Bridge rectifier

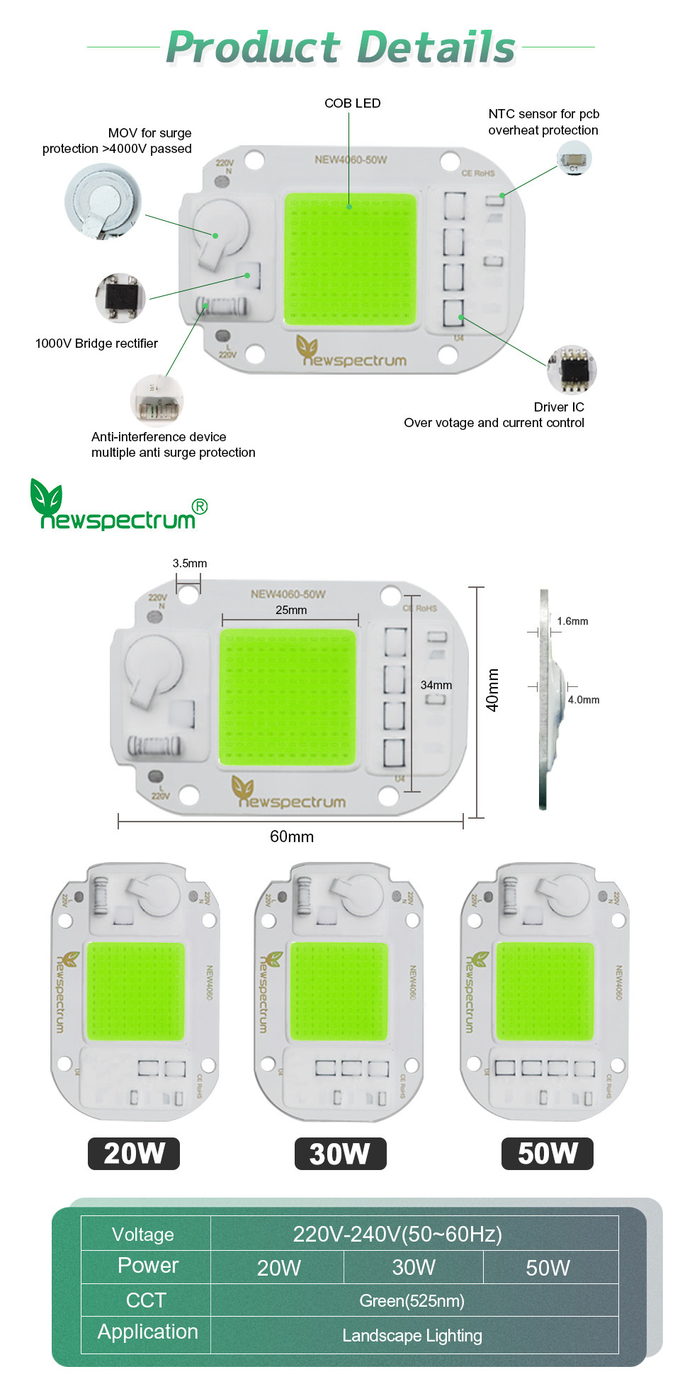

Specifications
1. Voltage: 220V-240V
2. Power:20W/30W/50W
3. Luminous Flux:100lm/W
4. CRI:80
5. Hole size:3.5 mm
6. Board Size:40 mm*60 mm
7. Luminous Size:25 mm*25 mm
8. Working Temperature:-20 °C~60℃
9. Application:Curing lamp/Grow light/Floodlight/Horticultural light

Specification

20W COB LED Module Size 40mm COB LED Chip For Light Floodlight Chip

FAQQ1. Are you a manufacturer or trading company ?A: Shenzhen Colighting Ltd is a leading LED light source manufacturer founded in 2013 in Shenzhen, China. We have a professional R & D team with more
than 18 years experiences in LED industry.OEM&ODM are available. We have many patent
products with independent innovation. We provide standardization
products as well as customization service that already benefited
many customers all over the world with “OPTIMAL” quality products
at “OPTIMAL” prices.
Q2: Can I have a sample order to test?
A: Yes, we are pleased to supply samples to test and check quality,
mixed sample order is
available.
Q3: How long will you ship after the order is placed?
A : Sample in stock:1-3days. Customized production:7-15days, depends on
the order quantity.
Q4: How can you guarantee the quality? A : Professional product quality inspection team ensures order
defective rate; Otherwise, we take full responsibility according to
our wholesome after-sales support system.
Q5: How to order the good?
A: First, tell us your request or application.
Second, according to your requirements, we give you the quotation.
Third, the customer confirms the sample of the official order, the
destination of the transportation, and free for the payment of the
sample.
Fourth, after receiving the payment, we will arrange production and
deliver the goods in time.
