    50W 220v Cob Led Module 3000k 20W 30W Solderless For Grow Light/

    Ask Lasest Price
    Brand Name : newspectrum
    Model Number : NEW4061-50W
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 50000pcs/m
    Delivery Time : 2-8 workdays
    Price : Negotiable
    • Product Details
    • Company Profile

    50W 220v Cob Led Module 3000k 20W 30W Solderless For Grow Light/

    Newspectrum 5454 3000k 20W 30W Solderless Connector Down light Spotlight COB Module LED COB 50W 220 V

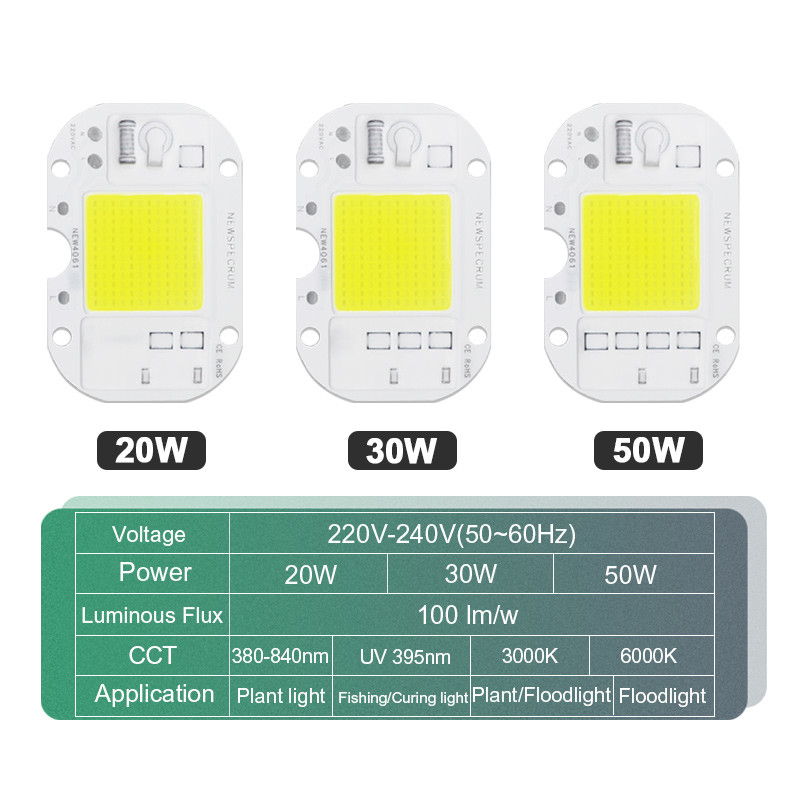

    Specifications:

    1. Model:NEW 4061

    2.Voltage:AC 220V-240V

    3. Power:50W

    4. Luminous Flux:100lm/W

    5. CRI:70-80

    6. Hole size:3.5 mm

    7. Board Size:40 mm*60 mm

    8. Luminous Size:25 mm*25 mm

    9. Chip Size:15*30 mils

    10. Working Temperature:-20 °C~60℃

    11. Application: Grow light/Floodlight

    12. Customized: Please contact us


    50W 220v Cob Led Module 3000k 20W 30W Solderless For Grow Light/

    Features

    :LED flip chip assembly technology. Good heat dissipation effect, higher light output rate, long life

    ②:High brightness, our LED chips are bigger than others

    ③:Smart IC Fit NO Driver

    ④:Constant current and constant power control
    ⑤:NTC sensor for pcb overheat protection
    ⑥:Voltage-regulator for ic vdd protection
    ⑦:Driver IC, over voltage and over current control
    ⑧:It can use LED dimmer or SCR dimmer to dimming it

    ⑨:MOV for surge protection>4000V passed

    ⑩:1000V Bridge rectifier


    Power50W
    VoltageAC220-240V(50Hz/60Hz)
    ColorCool/Warm White/Others
    CRI (Ra)70-80
    CCT1400-6500K
    Luminous Flux80 lm/W
    Board Size54 mm*54 mm
    Luminous Size25 mm*25 mm
    Hole Distance30 mm*30 mm
    Working Temperatur-20℃~60℃
    CustomizedColor/Brightness/Logo/Others
    ApplicationSpotlights/Grow light/Floodlight
    Specification
    50W 220v Cob Led Module 3000k 20W 30W Solderless For Grow Light/50W 220v Cob Led Module 3000k 20W 30W Solderless For Grow Light/50W 220v Cob Led Module 3000k 20W 30W Solderless For Grow Light/50W 220v Cob Led Module 3000k 20W 30W Solderless For Grow Light/50W 220v Cob Led Module 3000k 20W 30W Solderless For Grow Light/

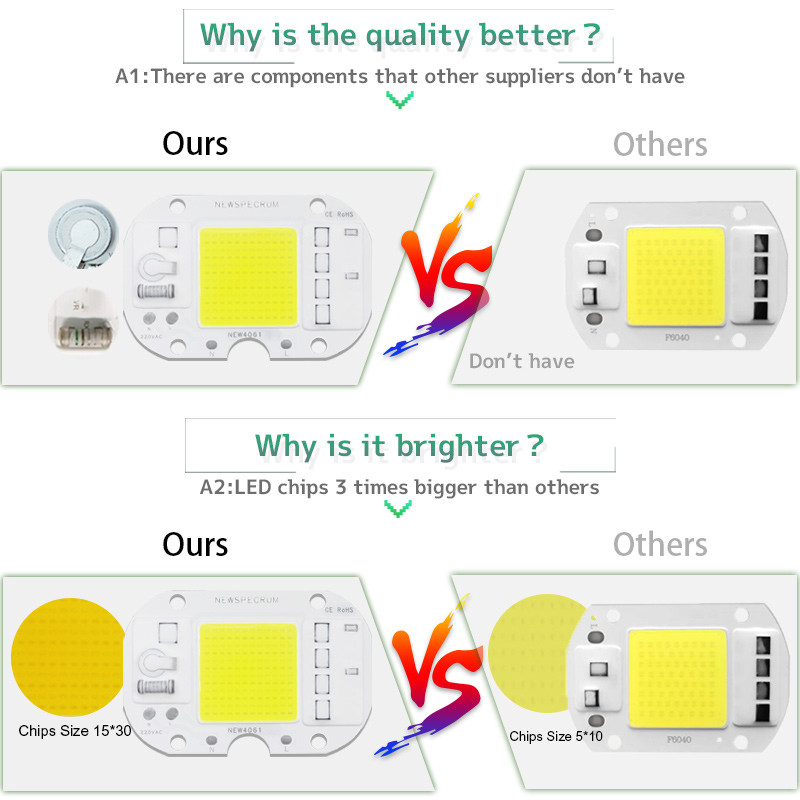

    Flip Chip
    A1:No lead connection required
    A2:No line shading, higher light output rate
    A3:Direct bonding, good heat dissipation effect
    A4:Suitable for high-power light sources
    A5:Longer life

    Wire Bonding Chip
    A1:Need lead connection
    A2:The front electrode blocks light, and the light output rate is low
    A3:Insulating glue solid crystal, low heat dissipation efficiency
    A4:Only suitable for small current
    A5:Wired occupies volume, small space
    FAQ
    Q1: Can I have a sample order to test?
    A: Yes, we are pleased to supply samples to test and check quality, mixed sample order is available.

    Q2: Do you have any MOQ limited?
    A: Low MOQ,1 pcs to test is available.

    Q3: How long is the lead time?
    A: Sample in stock: 1-3 days. Customized production: 7-15 days depend on the order quantity.

    Q4: How to order the good?
    A: First, tell us your request or application.
    Second, according to your requirements, we give you the quotation.
    Third, the customer confirms the sample of the official order, the destination of the transportation, and the fee for the payment of the sample.
    Fourth, after receiving the payment, we will arrange production an
    d deliver the goods in time.
