    AC220V COB LED Module Inverted Cob Light Source Waterproof 100W

    Ask Lasest Price
    Brand Name : newspectrum
    Model Number : cob-board
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 100000pcs/day
    Delivery Time : 3-5 workdays
    • Product Details
    • Company Profile

    AC220V COB LED Module Inverted Cob Light Source Waterproof 100W

    AC220V Inverted Cob Light Source Waterproof Drive Free Linear Integrated Dob Beads 100W Plant Lamp Projection Lamp

    model
    Cob board
    Overall dimensions
    180 * 100 * 6 (mm)
    Luminous surface size
    180 * 100 * 6 (mm)
    power
    100 (W)
    Color rendering index
    eighty
    Luminous flux
    16000 (lm)
    Forward voltage
    48 (V)
    Reverse voltage
    48 (V)
    Electrostatic breakdown voltage (ESD)
    2000 (V)
    Rated current
    2 (A)

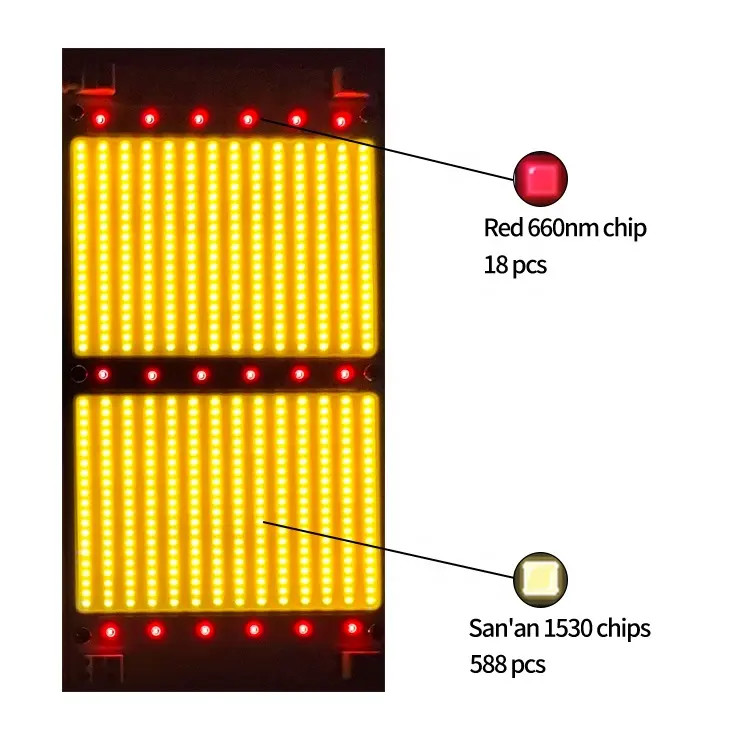

    Chip brand
    San An
    Chip size
    1530 (mil)
    Fluorescent powder brand
    brill
    Glue brand
    Shinyue, Japan
    Wire material
    nothing
    Substrate material
    High conductivity aluminum
    Luminous angle
    120 °
    luminous efficiency
    160 (lm/W)
    Color tolerance
    5 (SDCN)
    thermal resistance
    ≤ 10 (°/W)
    Maximum allowable junction temperature
    120 °
    Voltage temperature coefficient
    60 (mV/° C)
    1000 hours of routine aging
    103%
    6000 hours of routine aging
    100%
    Color temperature range
    3500 (K)
    Related color temperature
    3500K+660nm (K)
